OUR LASERS

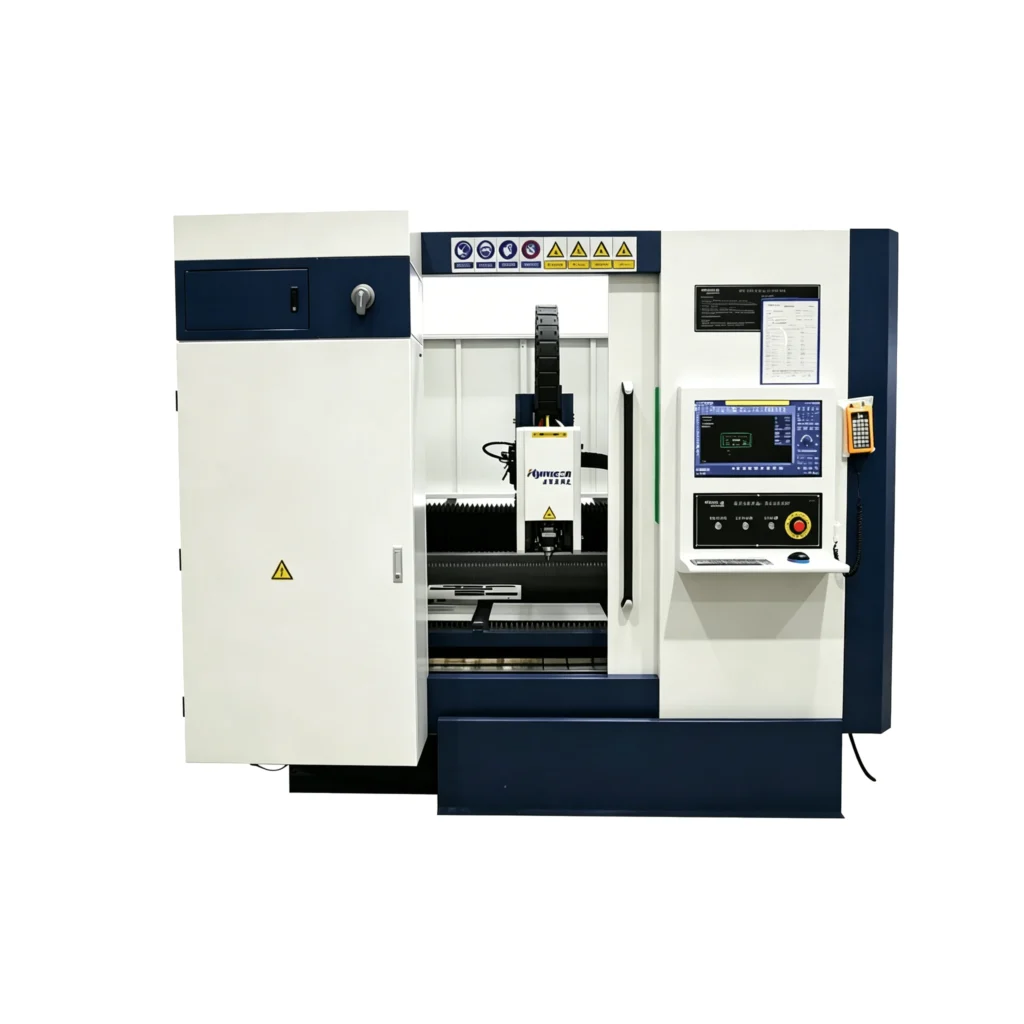

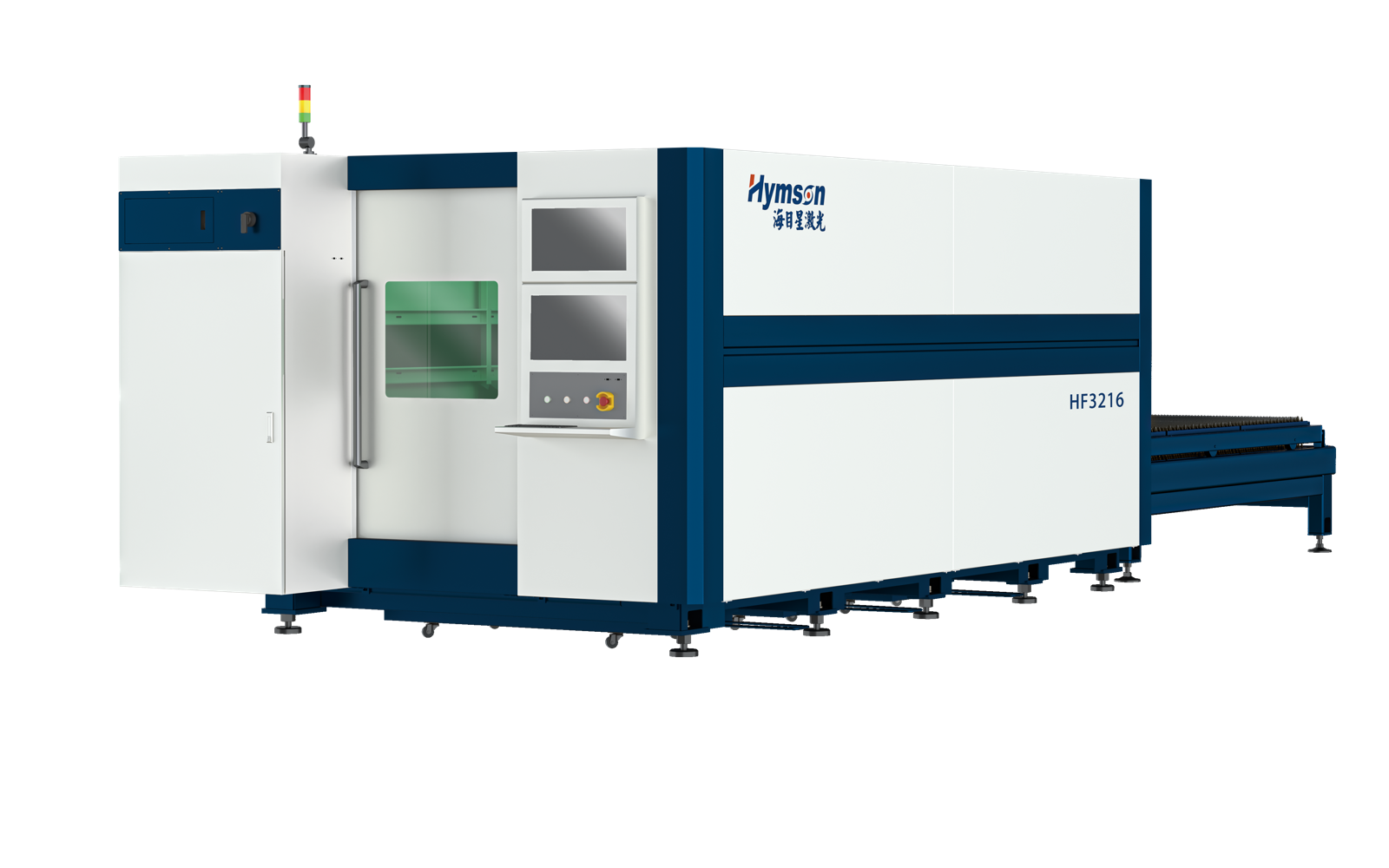

HIGH SPEED LASER CUTTING MACHINE
HF-G Series is a high-speed, fully enclosed fiber laser cutting machine designed for efficient and reliable sheet metal processing. With its dual shuttle table, robust machine structure, and precise cutting performance, it is ideal for carbon steel, stainless steel, aluminum, and other thin to medium plates. Built for productivity, safety, and ease of operation, the HF-G Series helps manufacturers improve output while maintaining consistent cutting quality.

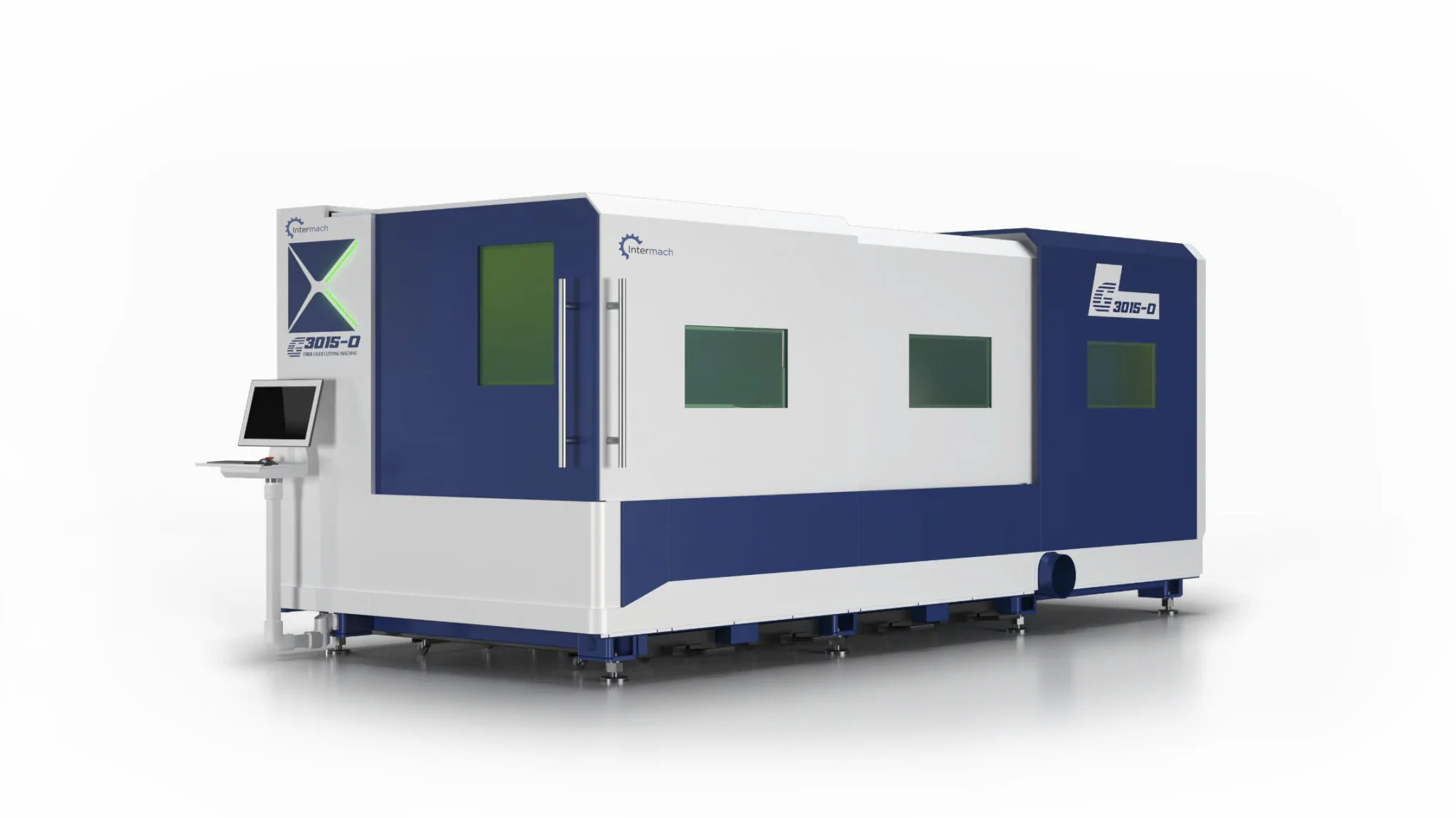

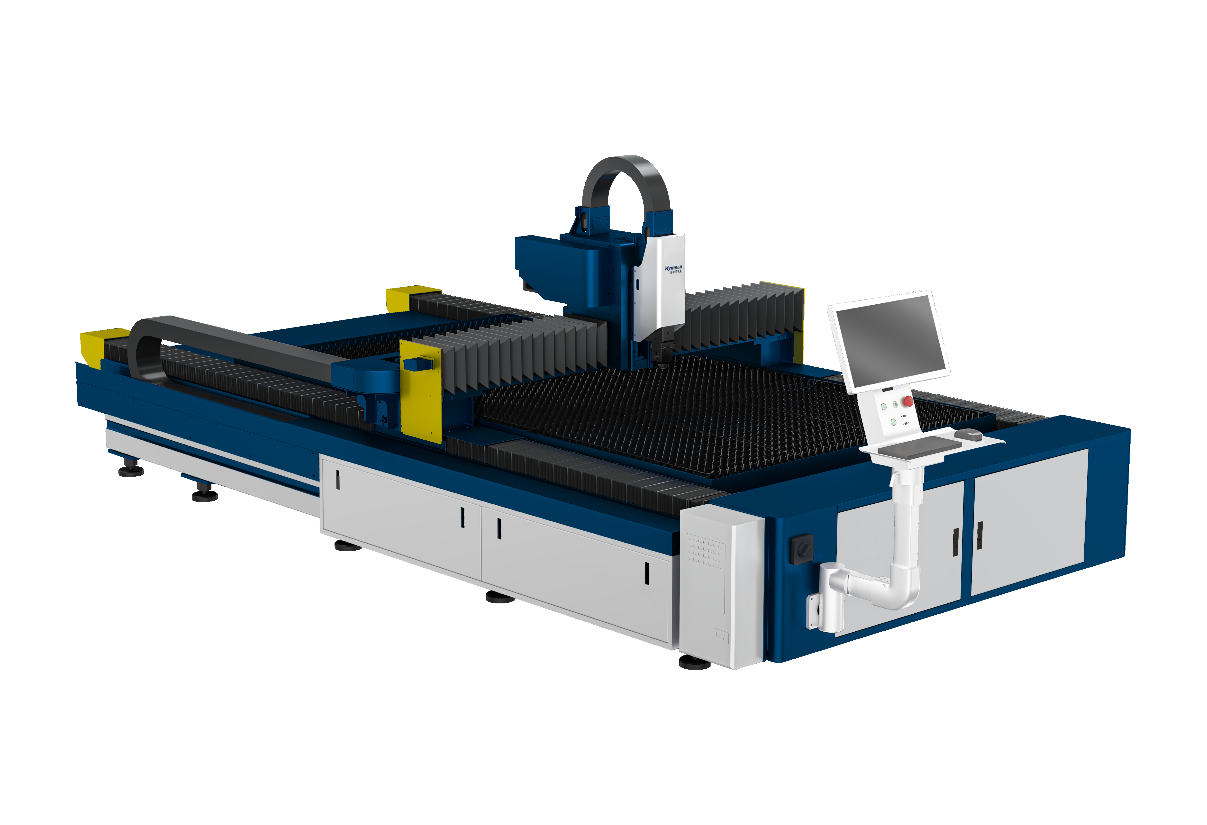

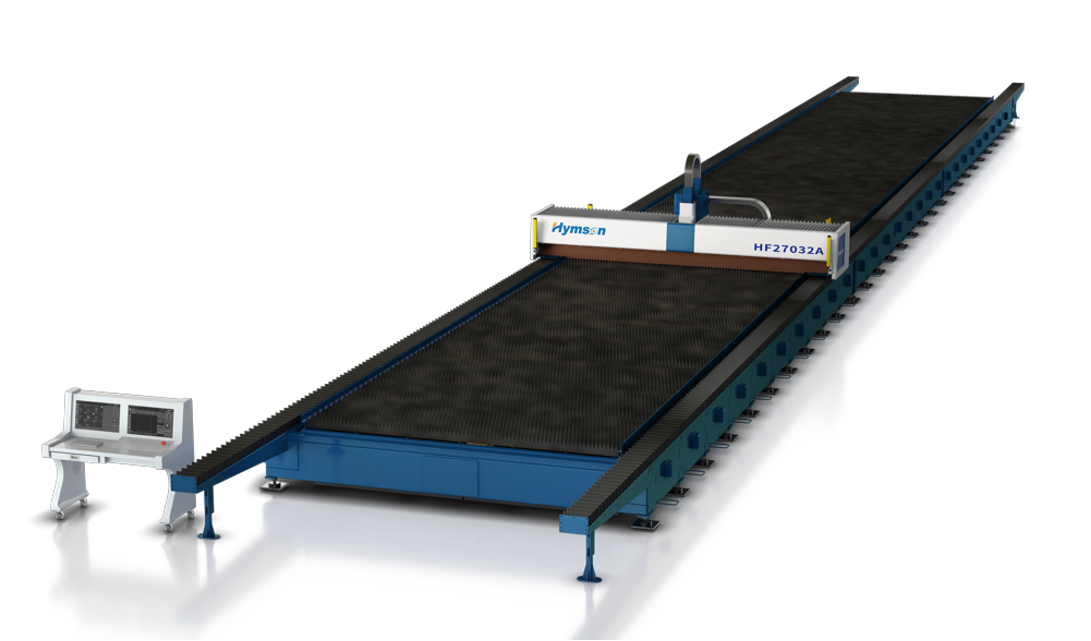

HF-A(LARGE FORMAT) SERIES FIBER LASER CUTTING MACHINE
HF-A (Large Format) Series is a customised large-size fiber laser cutting machine designed for efficient and stable processing of oversised metal sheets. With flexible format options and high-power capability, it is ideal for medium and thick plate cutting applications that require long-bed structure, reliable accuracy and continuous production performance.Â

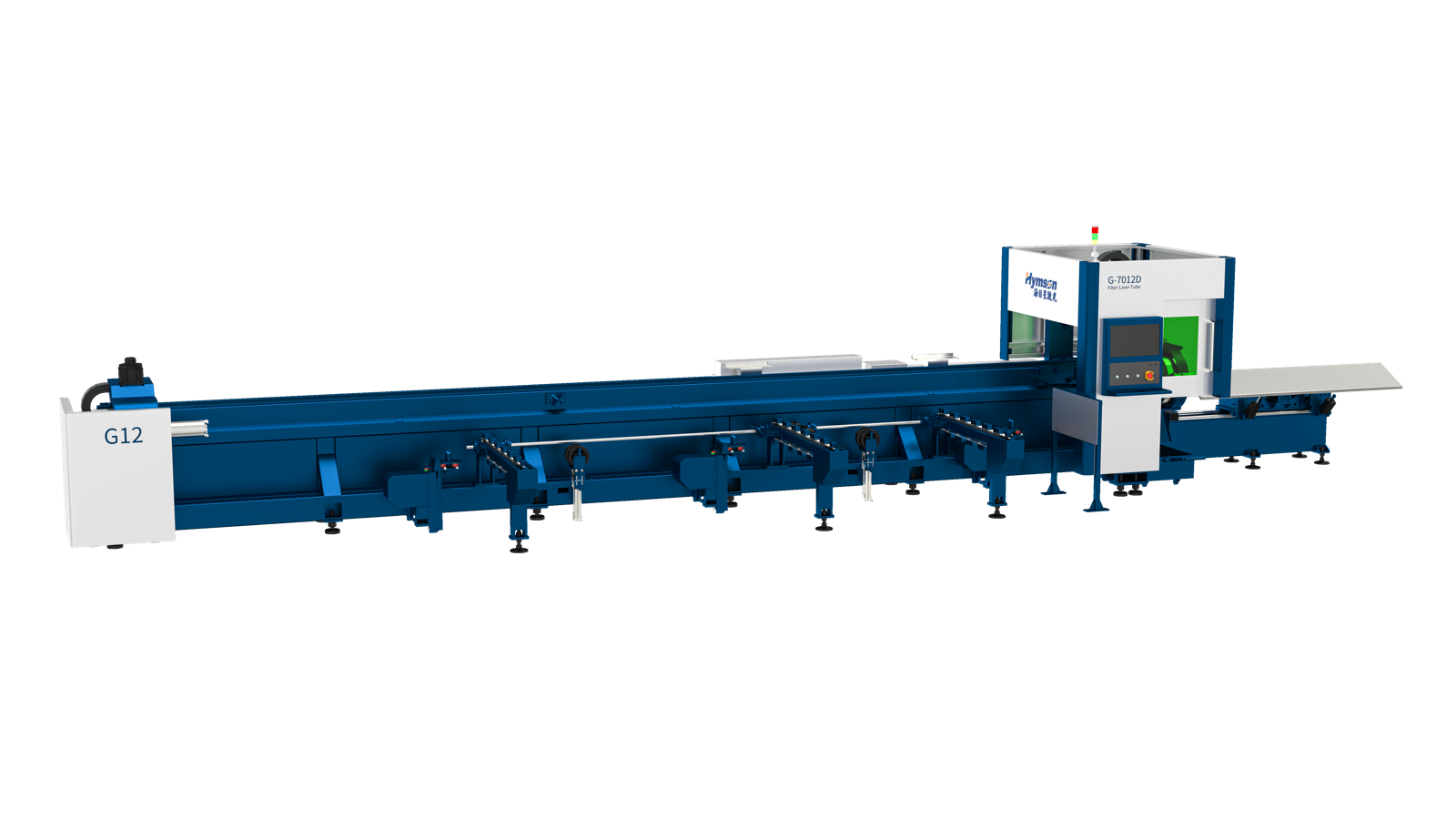

G Series Fiber Laser Tube Cutting Machine
The G Series Tube Cutting Machine is a high-efficiency laser tube cutting machine designed for small to medium-sized tube production. Featuring a side-hanging machine body, sealed pneumatic chuck, automatic feeding mechanism, and professional FSCUT control system, it delivers fast, accurate, and stable cutting while supporting lower labour cost and higher material utilisation.Â
Product Details
HF-G Series is a high-speed fiber laser cutting solution developed for manufacturers seeking efficient, precise, and reliable sheet metal processing. Designed with a fully enclosed structure and dual shuttle table, the machine combines safety, productivity, and cutting quality in one compact production system. It is especially well suited for processing carbon steel, stainless steel, aluminum, brass, and other thin to medium thickness metal sheets in demanding fabrication environments.
HF-G Series Specifications
Item | Specification |
Product Model | HF-3015G |
Machine Type | High-Speed Fully Enclosed Fiber Laser Cutting Machine |
Working Area | 3100 mm × 1550 mm |
Laser Power Range | 6000W – 12000W |
Table Type | Dual Shuttle Table |
Positioning Accuracy (X/Y) | ±0.03 mm/m |
Maximum Positioning Speed (X/Y) | 140 m/min |
Maximum Acceleration (X/Y) | 1.5 G |
Maximum Z-axis Speed | 40 m/min |
Low-pass Filtering | 7 Hz |
Floor Space | 8700 mm × 2800 mm |
Control System | FSCUT |
Machine Bed | HF-G Honeycomb Heavy Duty Lathe |
Cutting Head | HYMSON Auto Zoom Cutting Head |
Precision Toothed Rack | JT |
Precision Guide Rail | JW / ROUST |
Pneumatic System | AIRTAC / FELTON |
Fiber Laser | 6000W–12000W |
Product Details
The G Series Tube Cutting Machine is developed for manufacturers who need a practical, high-efficiency solution for small to medium-sized tube processing. Built with an upgraded side-hanging structure, automatic feeding support, sealed pneumatic chuck, and FSCUT professional tube cutting system, the series delivers strong performance in speed, precision, and production stability.
HF-G Series Specifications
Model | G7012 | G7024 |
Tube Type | Circular tubes / Square tubes / Rectangular tubes / Angle steel / Channel steel | Circular tubes / Square tubes / Rectangular tubes / Angle steel / Channel steel |
Circular Tube Range | Ø5–120 mm | Ø10–240 mm |
Square / Rectangular Tube Range | □5–120 mm / 5–120 mm side length | □10–240 mm / 10–240 mm side length |
Power | 3000/6000W | 3000/6000W |
X&Y axis Max. acceleration | 1．5G | 1.2G |
Material Loading Length | 7000 mm | 7000 mm |
Maximum Weight of a Single Tube | 150 kg | 300 kg |
Floor Space of Whole Machine | 13000 × 3500 × 2800 mm | 13000 × 3500 × 2800 mm |
HYMSON Partner in Australia
ROBOLASER TECHNOLOGIES - Hymson in Australia

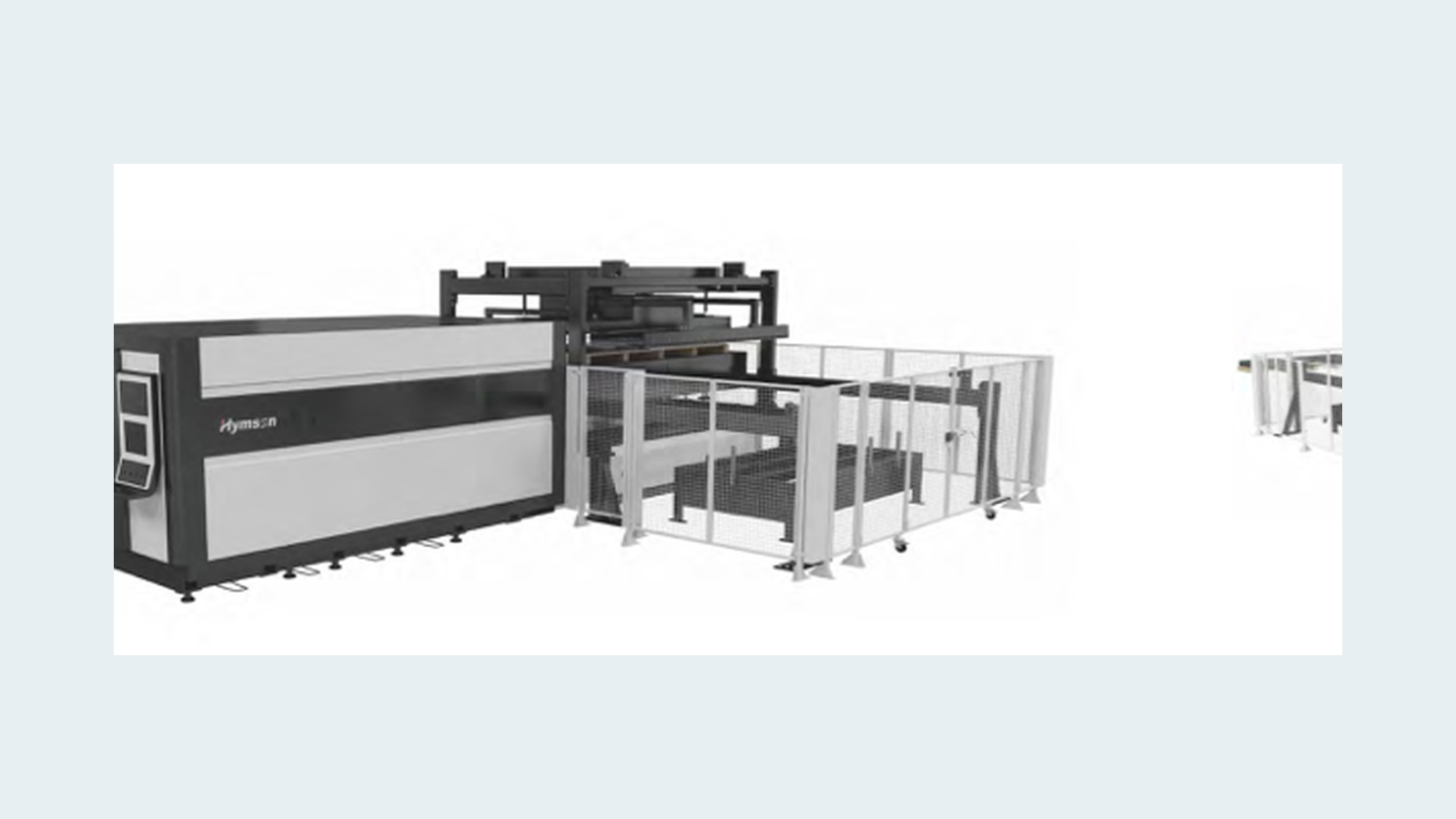

Robolaser Solutions provides industrial laser cutting and automation solutions for manufacturers, metal fabrication businesses, sheet metal workshops, and steel-related industries in Australia. Our offering includes fiber laser cutting machines for sheet metal, high-power and large-format laser cutting systems, tube and profile laser cutting solutions, laser welding systems, and optional automation solutions such as loading/unloading integration and digital factory expansion. In addition to equipment supply, we focus on practical machine selection, installation coordination, operator training, parameter support, after-sales service, and long-term production optimisation to help customers improve efficiency, reduce downtime, and unlock more value from their equipment.
